Design Architecture

Architectural Overview

The project adopts a Hexagonal Architecture combined with Domain-Driven Design (DDD).
This pairing isolates the pure domain model at the centre of the hexagon while structuring the codebase around well-defined bounded contexts and ubiquitous language, ensuring:

• Loose coupling between business rules and I/O mechanisms.
• Straightforward automated testing of the core, thanks to side effect–free domain code.
• Easy replacement or evolution of user interfaces and external services without impacting the domain or its ubiquitous language.
• Clear, expressive models that mirror business concepts, making the game logic easier to reason about and extend.

Package Structure & Responsibilities

Layer / Package	Main Responsibility	Key Classes (examples)
Domain (scalata.domain)	Immutable business objects and rules; no side-effects.	Player, Enemy, Item, Room, World, GameSession, GameState, value objects (Direction, Point2D).
Application (scalata.application)	Pure application services & use-cases that orchestrate domain entities and encapsulate the game loop.	FloorGenerator, use-cases (GameRunningUseCase, EnemyMovementUseCase), factories (EnemyFactory, ItemFactory).
Application - Input Ports	Abstract contracts that describe what the core can do.	Traits exposed by use-cases (e.g., CreatureUseCase, GameView).
Input Adapters	Translate external input into port calls (e.g., CLI & JLine controllers).	ConsoleView, JLineView, MenuController, GameController.
Infrastructure (scalata.infrastructure.view, …controller)	Concrete UI and system services.	CLI/JLine launchers.

All dependencies point inwards: domain → application → ports → adapters. No inner layer imports symbols from an outer layer, satisfying the Dependency Inversion Principle.

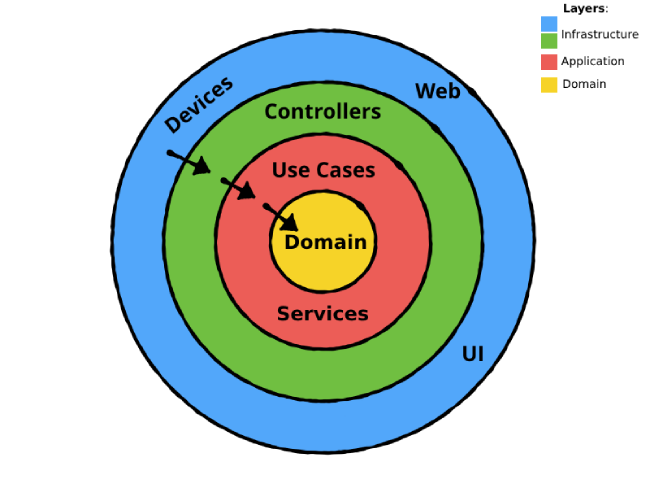

Static View (Hexagon)

Domain-Driven Design Elements

1. Entities – Player, Enemy, Item (with subclasses Potion, Weapon, …).
2. Value Objects – Point2D, Direction, PlayerCommand.
3. Aggregates – World (root) containing Rooms and Player.
4. Domain Services – CombatEngine, geometry utilities.
5. Repositories / Persistence – not yet needed; state is held in-memory via GameSession.

Adherence to Clean Architecture Principles

• DIP & ISP: input/output ports are small, focused traits; adapters(controllers) implement them, keeping the domain pure.
• SRP: each component handles a single concern (parsing, rendering, AI, etc.).
• Open/Closed: new UI (e.g., Swing front-end) can be added as another adapter without modifying existing core code.

Extensibility Scenarios

Scenario	Required Change	Impact Radius
Add GUI (Swing/Web)	Implement new input & output adapters against existing ports.	Adapters only
New Item type	Add concrete Item subclass & entry in ItemFactory.	Domain + factory
Boss AI	New use-case handler plus strategy injected into AIEngine.	Application layer
Persist replays	Create ReplayRepository (output port) + adapter to file/DB.	Application + adapter

Thanks to the Ports-and-Adapters approach, each scenario remains localized and does not ripple into the domain core.

Summary of Benefits

• Testability – pure domain code, deterministic RNG seeds, and a single-threaded loop simplify unit & property tests.
• Maintainability – strict package boundaries and scalafmt keep the codebase clean.
• Scalability – performance hotspots are confined to AIEngine and FloorGenerator, allowing future parallelization under the same ports.
• Portability – runs on any JVM 17+ environment; UI adapters can target console or desktop without changing the game rules.

This design positions Scalata for incremental growth—new gameplay mechanics and presentation layers can be added with confidence that existing behaviour will remain stable.
